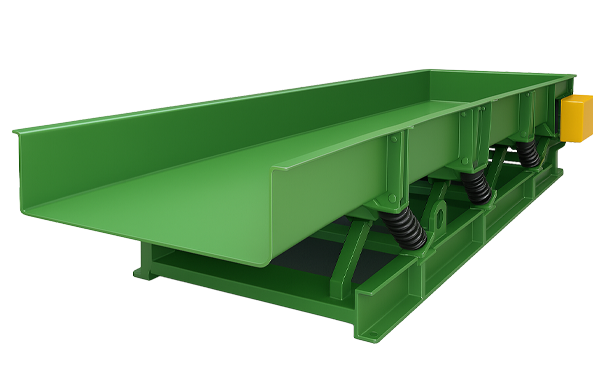

Transporting bulk materials like construction waste, wood, or scrap metal shouldn’t compromise the integrity of your building or your equipment. ViPower’s Natural Frequency Conveyors (VPLHC series) are engineered to deliver smooth, consistent material flow – while dramatically reducing vibration transmission.
Operating at their own natural frequency, these conveyors require minimal energy to achieve high-performance movement. That means lower power usage, less maintenance, and a longer lifecycle – even in aggressive environments.
From heavy waste to light bulk goods, the VPLHC range handles:
Construction debris and demolition waste
Rubber, plastics and scrap materials
Domestic or industrial refuse
Built for recycling, waste handling, and bulk material processing, our conveyors ensure stable and controlled transport without damaging your infrastructure.
The VPLHC’s natural frequency system reduces mechanical strain on components like bearings and drive shafts, leading to:
Extended service intervals
Less downtime
Fewer part replacements
Typical operation ranges from 320 to 470 RPM, with stroke lengths between 19 and 28 mm, adaptable to your specific process and material flow needs.
All ViPower Natural Frequency Conveyors come with:
Laser-cut tab-and-slot construction for a perfect fit and fast delivery
Standard, isolated, or balanced & isolated options
Vibration isolation up to 98% to protect your structure and reduce noise
Need a low-maintenance, high-efficiency conveyor that won’t shake up your production line? 👉 Contact us to discuss your setup – or browse our full conveying solutions.
The ViPower VPLH Natural Frequency Conveyors operate at their own natural frequency, which is the frequency, in cycles per minute, of free vibration of an elastic system. For example, once set in motion, a spring mounted weight will vibrate at its natural frequency until frictional losses gradually slow it to stop. When force is periodically applied in resonance with the natural frequency of the spring and weight systems, large amplitudes of vibration can be maintained with a very small exciting force. This will provide no heavy stresses to the springs, drive-shaft and bearings, which results in a longer conveyor life, lower maintenance and power costs. Whatever the application is, Construction and demolition
Waste, wood, rubber, scrap metal, domestic refuse, ViPower natural frequency conveyors handle it. The ViPower Natural Frequency Range of conveyors is available as standard, balanced, isolated or balanced & isolated. The design of a balanced feeder consists of a counterbalance weight, vibrating 180° out of phase with the vibrating trough. An Isolated conveyor design has got a feeder base beam which is several times the mass weight of the vibrating trough. The entire conveyor is supported on a structure with isolation springs. Wherever the installation of the equipment will be, ViPower can minimise vibrations up to 98%. The ViPower Natural Frequency range of conveyors are formed of laser cut tab and slot welded construction parts, which allows us to manufacture an accurate machine with short lead-times. The machines normally operate at 320 up to 470 RPM, with a stroke of 19, 22, 25 or 28 mm.
You’re not just buying a machine — you’re investing in a solution. That’s why we start with in-depth process analysis, custom layout designs, and detailed flow simulations. Whether you’re upgrading an existing line or building a new one from scratch, we’ll engineer a system that fits your operation — not the other way around.
When it’s time to go live, we’ve got your back. Our technicians install and commission every machine on-site, ensuring seamless integration with your production line. We’ll get you up and running fast — safely, efficiently, and with minimal disruption.
Downtime is the enemy — and we help you stay one step ahead. With a tailored service contract, you get scheduled maintenance, priority support, and expert checks that keep your equipment running like clockwork. No surprises, no guesswork — just reliable performance, year after year.
